3 in 1 Vacuum LCD Screen Separator + Preheater +OCA Glue Polarizer Remover Mobile Phone LCD Screen Refurbish Machine

Item NO.:TBK-318
Price:$210.00
Gross Weight:9.5kgs
Volume Weight:12.5kgs
Points:0.0
Views:60767
Qty:
-     +   $210.00
Share |

Buy more, save more

3+ units 6+ units 10+ units Large order
$205.00 $200.00 $195.00  Inquiry
View History

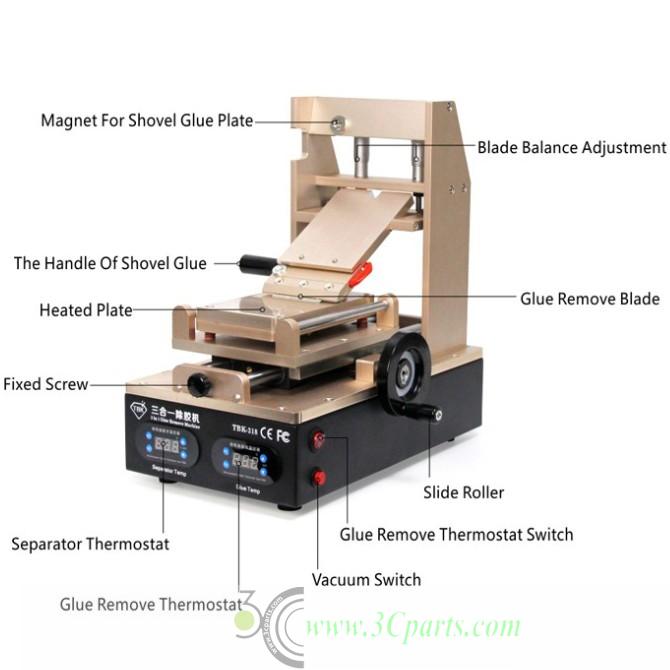

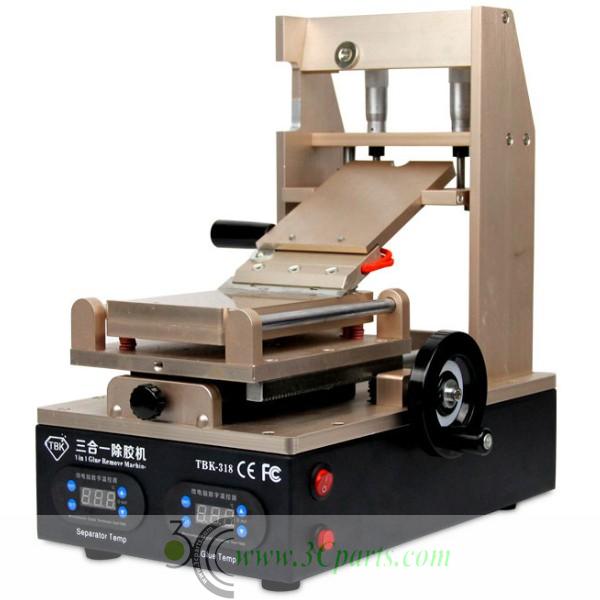

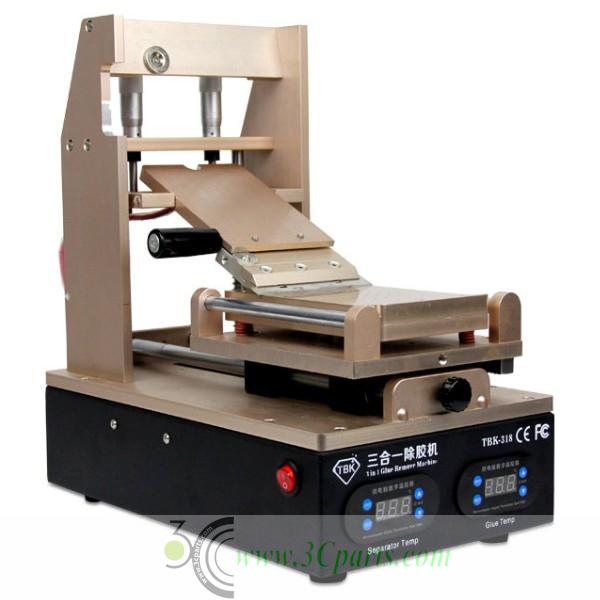

3 in 1 Vacuum LCD Screen Separator + Preheater +OCA Glue Polarizer Remover Mobile Phone LCD Screen Refurbish Machine


PARAMETER
SUPPLY:AC220V /AC110V
POWER:350W
SIZE:200*330*350MM
WEIGHT:9.5KG

The operation steps of screen separation:
1. Haul back the lower plate,lock the screw tightly(skid resistance).
2. Turn on the thermostat switch on left,setting the temperature to 80 degree.
3. Put the silica gel on the heated plate holes to holes.
4. Put downwards the screen onto the sillica gel ,turn on vacuum switch,the screen being sucked.
5. Adjust steel wire to the height of pressing the glass exactly,keep constant speed to separate LCD and glass.
6. Take off the LCD,the opraration steps of screen separation is .

The operation steps of polarizer remove :
1. Turn on the thermostat switch on right,setting the temperature to 180 degree.
2. Put downwards the screen onto the sillica gel,turn on vacuum switch, the screen being sucked.
3. Put blade on the one end of polarizer, push the plate and then polarizer will fall off.
4. Turn down vacuum switch and take out screen.

package inside :
1 x TBK-318   3 in 1 Glue Remove Machine
